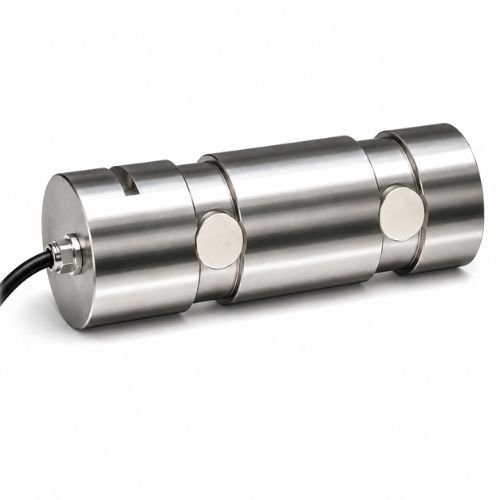

Pin type Load Cell

A Pin Type Load Cell is a load-measuring sensor designed to measure force directly through a load-bearing pin or shaft. It is especially useful where a conventional load cell cannot be easily installed and the existing mechanical pin can be replaced with a load-measuring pin.

Dynamic Equipment India’s Pin Type Load Cell provides a practical solution for measuring loads in lifting and material-handling equipment. Its integrated design allows force measurement without requiring major changes to the mechanical arrangement, making it suitable for applications where space, installation, and accurate load monitoring are important.

Key Features & Benefits

• Pin-Based Load Measurement – Measures force through the load-bearing pin itself.
• Space-Saving Design – Suitable for applications where installation space is limited.
• Easy Mechanical Integration – Can be designed to replace or fit into suitable existing pin arrangements.
• Reliable Load Monitoring – Provides useful load information for connected monitoring systems.
• Robust Construction – Suitable for demanding lifting and industrial environments.
• Continuous Measurement – Allows load conditions to be monitored during equipment operation.
• Application-Specific Design – Can be configured according to the required pin dimensions and load-measuring application.

How Does a Pin Type Load Cell Work?

A Pin Type Load Cell works by replacing a conventional load-bearing pin with a specially designed sensing pin. When force is applied through the pin, the internal sensing elements detect the resulting mechanical strain and convert it into an electrical signal.

This allows the load to be measured at the actual point where the force is transferred, making the solution useful for applications where direct load measurement is required.

Applications

Pin Type Load Cells can be used in:

• Cranes & Lifting Equipment
• Material Handling Systems
• Wire Rope & Pulley Assemblies
• Winches
• Load Monitoring Systems
• Industrial Machinery
• Lifting Attachments
• Heavy-Duty Equipment

Why Choose Dynamic Equipment India?

Dynamic Equipment India provides application-focused load measurement solutions for industrial and lifting equipment. Our Pin Type Load Cells are designed around the mechanical requirements of the application, helping achieve reliable load measurement without unnecessarily changing the existing equipment arrangement.

They are particularly suitable when direct load measurement, compact installation, and mechanical integration are key requirements.

Direct Load Measurement Where It Matters

One of the main advantages of a Pin Type Load Cell is that it measures force at the load-bearing connection itself. This can simplify load monitoring in equipment where installing a traditional load cell may be difficult or impractical.

For cranes and other lifting systems, this approach can provide valuable load information while maintaining the functionality of the original mechanical arrangement.
